REFERENCE

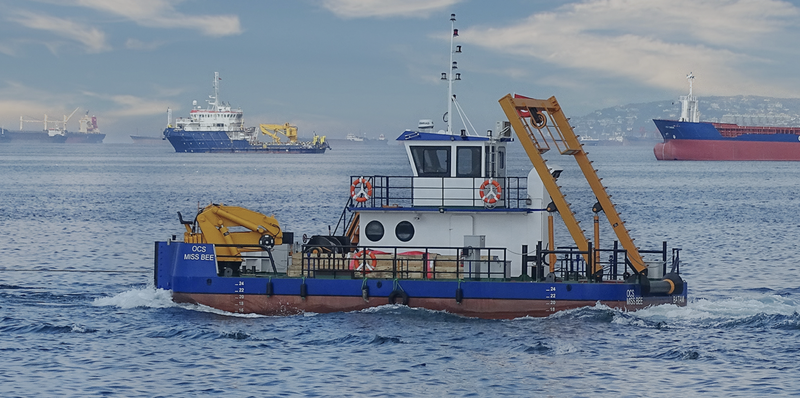

· 15 METER STEEL MULTICAT / MOTORBARGE

DIMENSIONS

· Length OA: 14.95 m
· Beam OA: 8.00 m
· Depth at sides: 2.40 m
· Draught Aft: 1.20 m
· Deck Area: Total 60sqm ***Adjustable

TANK CAPACITIES

· Fuel-Oil: 20.00 m3 ***Adjustable
· Fresh Water: 10.00 m3***Adjustable

PERFORMANCES

· Bollard Pull: 9TBP
· Speed Range: 9 to 11.5 Knots

PROPULSION SYSTEM -Optional

· Main Engines: 2x Caterpillar C12 390HP (Standart)
· Total Power: 780 at 1800 rpm
· Gear Boxes: 2x ZF W325 4:1.0
· Propulsion: 2x Fixed Pitch Propellers 900mm Diameter

AUXILIARY EQUIPMENT

· Main Generator: Cat C2.2 17.5kw
· Pumps: Bilge/GS/Fire Optional

DECK LAYOUT

· Anchor: 30kg Pool(High Holding Power)
· Chain: 10m 8mm
· Anchor Windlass: Optional

DECK MACHINERY

· Anchor: 30kg Pool(High Holding Power)
· Chain: 10m 8mm
· Anchor Windlass: 1.5ton
· Deck Crane: 18t/m 11meter outreach maximum
· Towing Wich: 20ton Optional
· A Frame: Optional
· Bow & Stern Roller: Standard / Optional

NAUTICAL AND COMMUNICATION EQUIPMENT

· Search Lights: 100w
· Compass: Standart
· VHF: Raymarine Ray49
· Radar: 48NM DIGITAL
· GPS, CHARTPLOTER, Echosunder: Raymarine MFD
OPTIONAL EQUIPMENTS

A)Hydraulic operated eleveted wheelhouse
B)Pushbows with rubber fender
C)Steel D-shape fender around the vessel
D)20t Anchor Handling Winch
E)5t Hydraulic mooring Winches
F)5t Manual mooring Winches
G)Between 40tm to 60tm Hydraulic Crane

Motorbarge 1500 designed to provide support to dredging and marine contruction. Vessel is able to assist windfarm construction and asist also. Vessel can be equiped with two crane , maximum size of 20t/m. Vessels high stability allows to handle heavy loads and work at offshore conditions. Towing is an optional operation at this kind of vessel. With towing option vessel will be equiped with more powerfull diesel engines with kortnozle and kaplan type proppelers. Vessels deck space allows vessel to carry 40ft container or dredging pipes for repair . Vessel is designed for both offshore and coastal operations. Main functions are dredging support, wind farm support, diving support and bridge maintanance.

OPTIONAL EQUIPMENTS
ENGINE
: Caterpillar C18 600hp@ 1000rpm

Gearbox : Twindisc 4:1 RATIO
Genarator : Caterpillar C2.2 17.5kw
Genarator 2 : Caterpillar C4.4 86kw
Bow Thruster : 1 X Hydraulic 50hp
Deck Crane Front Deck : 30T/M Hydraulic knuckle boom
Deck Crane Aft Deck : 18T/M Hydraulic knuckle boom
Deck Winch : 1 X 30t Hydraulic line handling
Mooring Winch : 4 X 5t Manual Operated

Optional Main Egnies:

A)DOOSAN 126TI 400bhp@2100rpm
B)IVECO C13 300 300hp@1800rpm
C)CUMMINS 6CTA8.3-M (255hp@1800rpm
D)CUMMINS QSM11- 400hp@2100rpm
E)IVECO C13 520hp@2000rpm
F)SCANIA 300 - 600hp
G)SCANIA 300 - 600hp
H)CATERPILLAR 300 - 600hp


http://www.aryashipyard.com/multicat1500.php

Specifications

Construction

We only use Classification cretificated minimum "A" Grade Steel

Engine(s)

Caterpillar C12 B rating HEavy Duty

Caterpillar C12 B rating HEavy Duty

Caterpillar C12 B rating HEavy Duty

Caterpillar C12 B rating HEavy Duty

Twin Disc 5114 DC

Twin Disc 5114 DC

Twin Disc 5114 DC

Twin Disc 5114 DC

Disclaimer

The details of this vessel is offered in good faith but cannot be guaranteed. Vessels specification can be changed without notice. We warrant the accuracy of this information and warrant the conditions of the vessel. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
