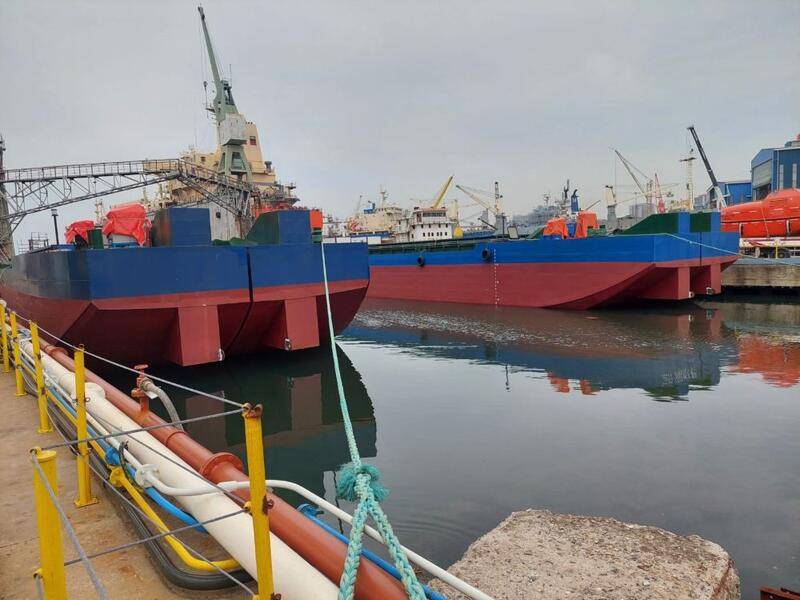

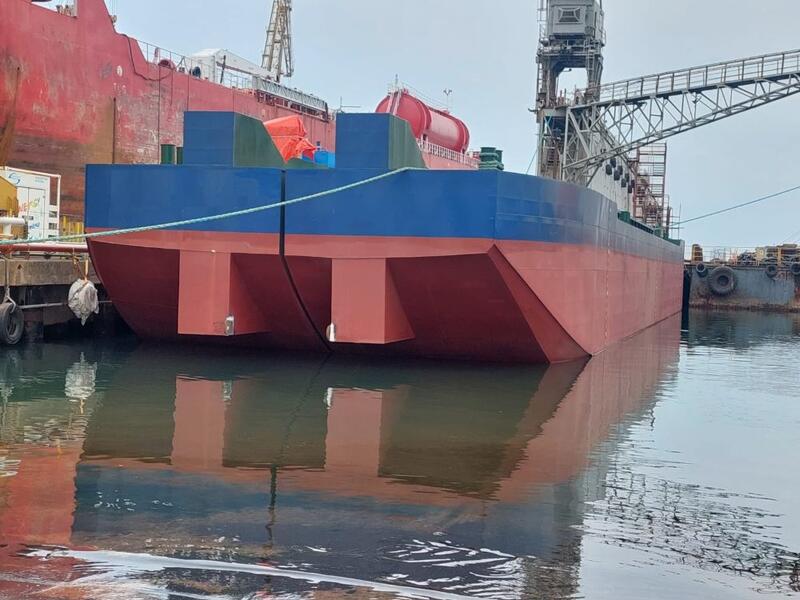

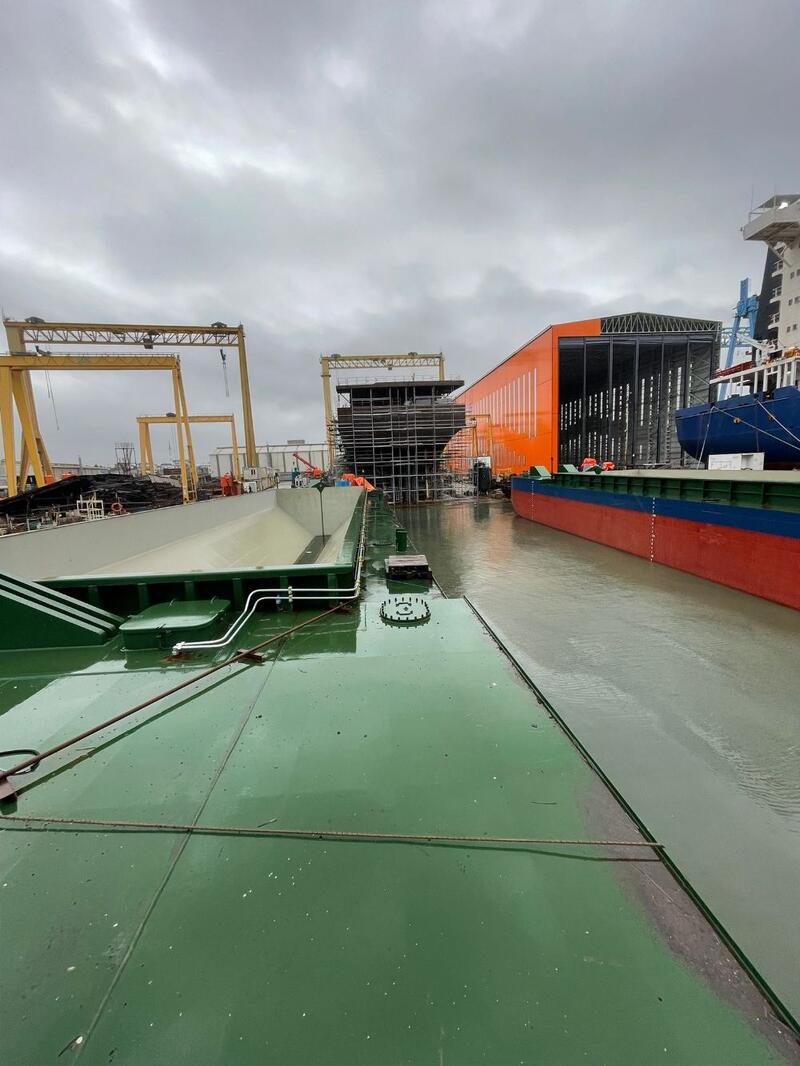

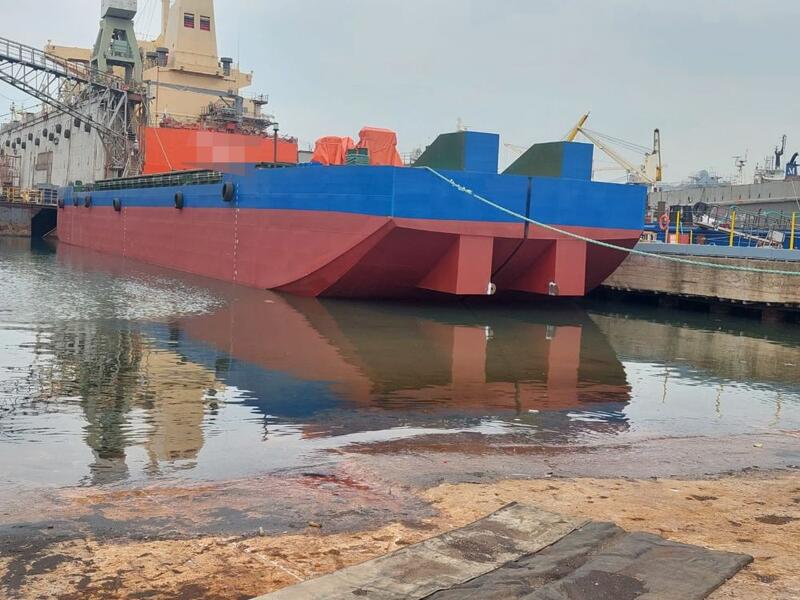

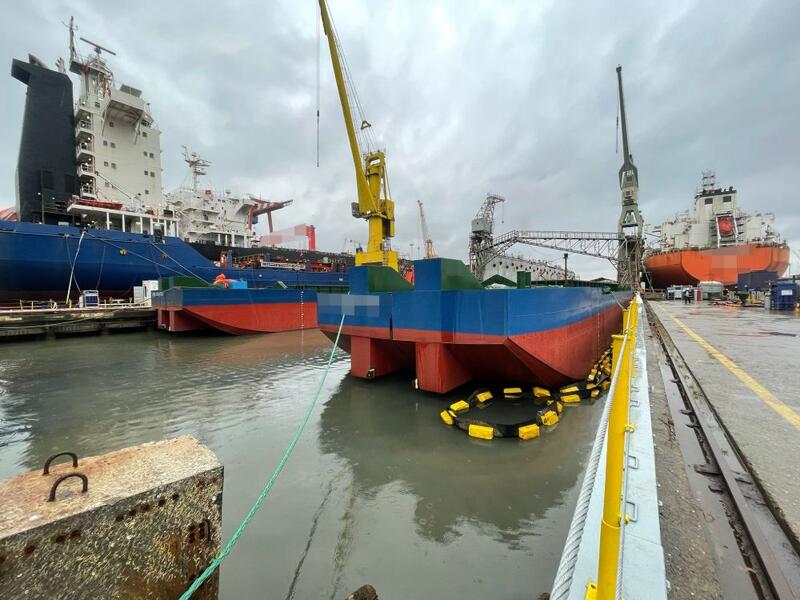

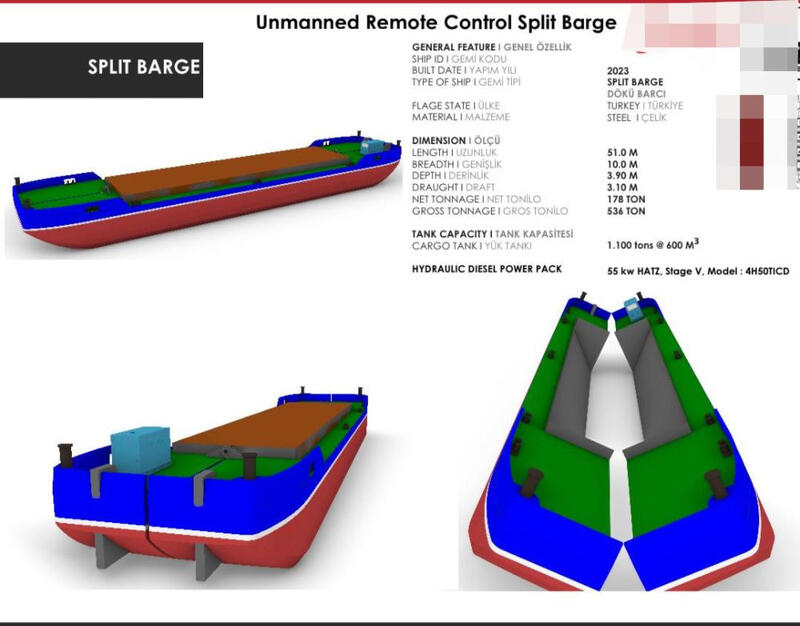

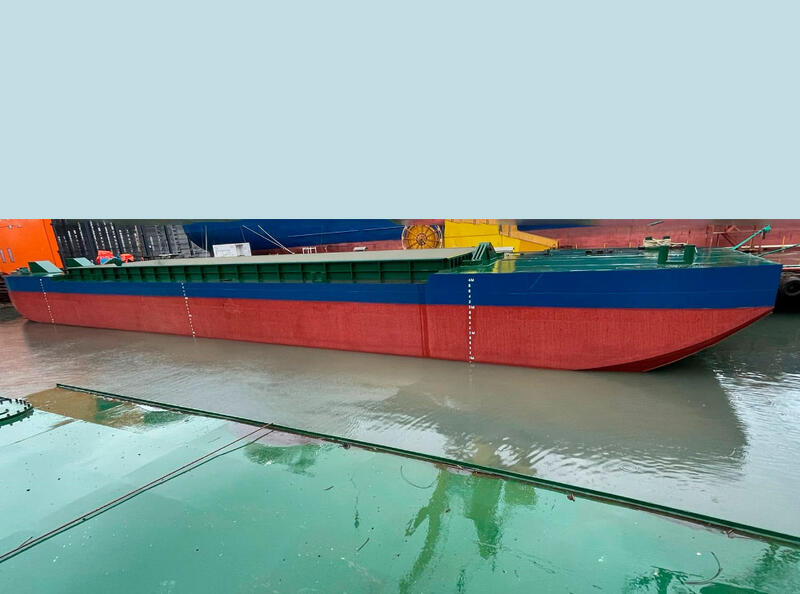

DO0365 Barge - Split Barge For Sale & Charter
- FROM DIRECT OWNERS -

Barge is totally new. Never used.

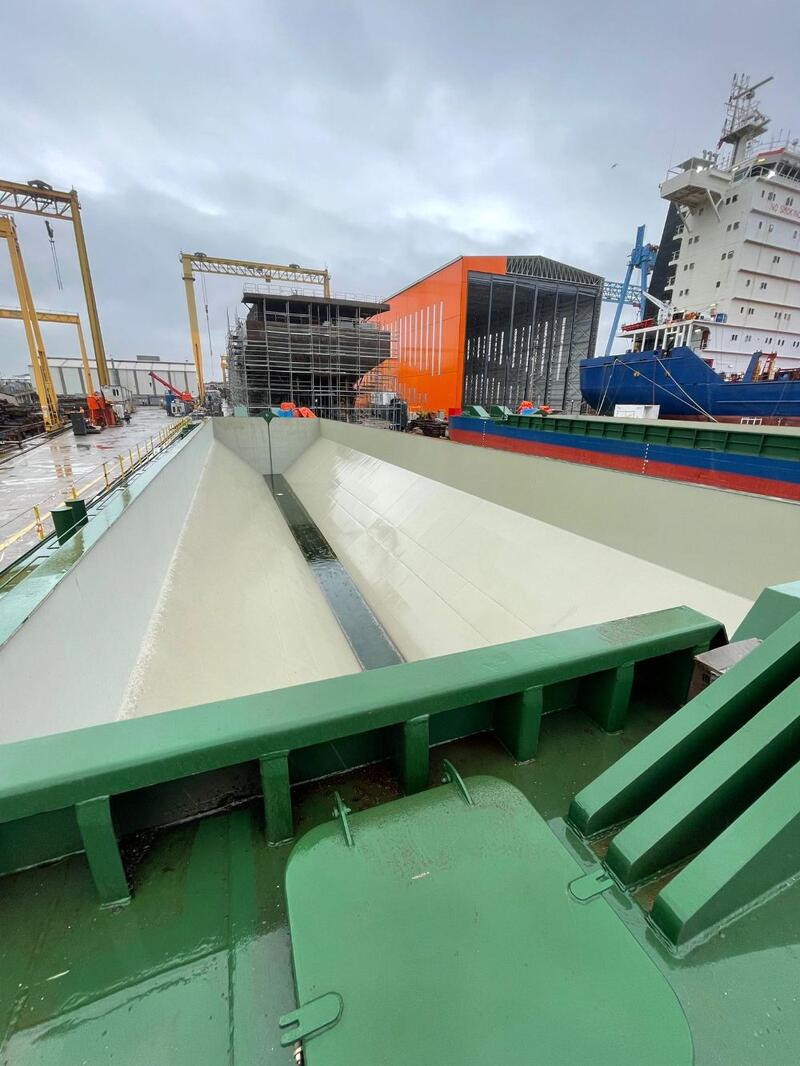

Holder capacity: 1100 MT and 600 m3

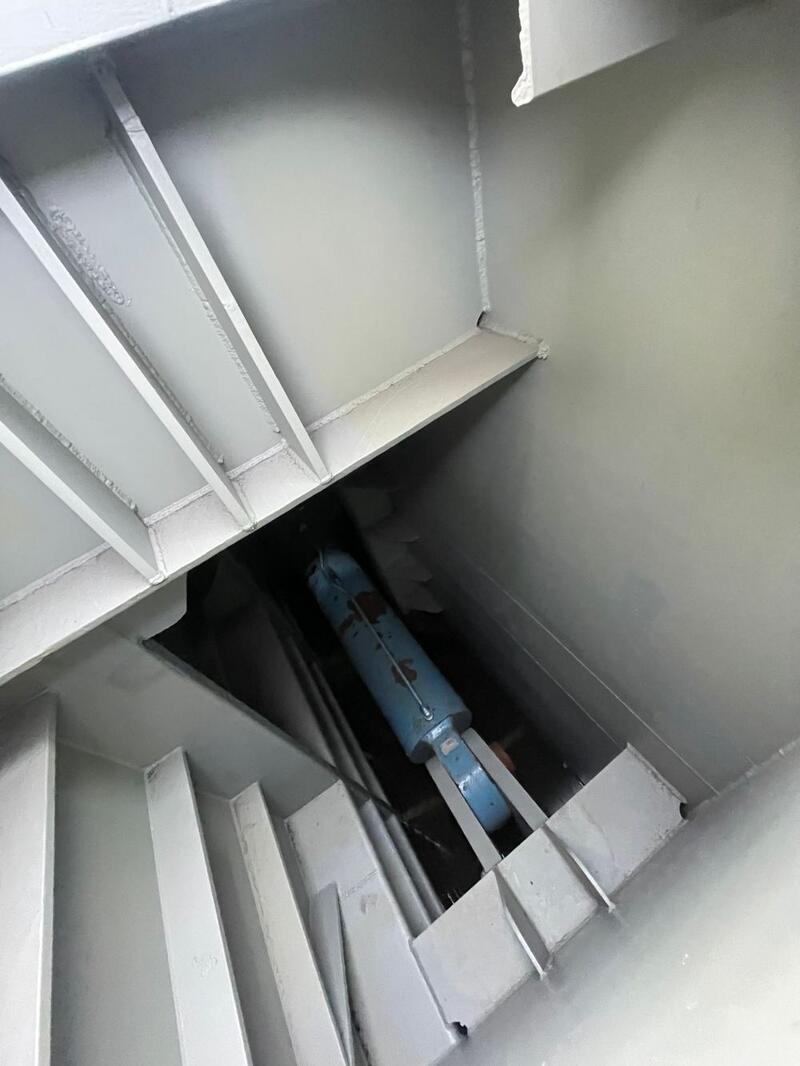

HYDRAULIC DIESEL POWER PACK : 55 KWA HATZ, STAGE V, MODEL :4H50TICD

FRAME SPACES : 1.5 m (EXCEPT FORE AND BOW SECTIONS =0,75m)

Specifications

Construction

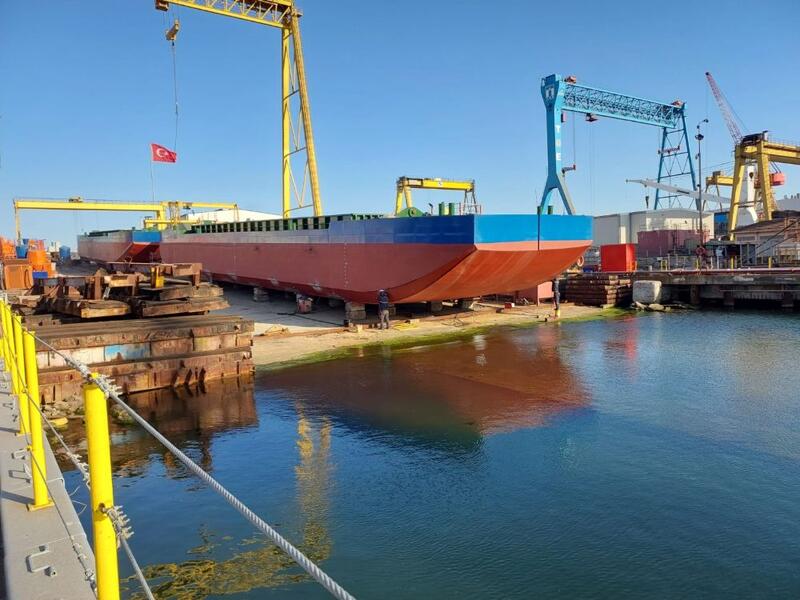

Built (year and place) 2023,TURKEY
Hull material Steel
Length Overall (m) 51.00 m
Length between perp. (m) 51.00 m
Breadth (m) 10.00 m
Depth (m) 3.90 m
Draft (m) 3.10 m
NT (tons) 178 tons
GT (tons) 536 tons

Equipment

MOORING BOLLARD TEC.SPEC
Standart : DIN 82607
Material : S355 (EN 10 025 ) St523 (DIN 17 100)
Safety Factor : 5
Pull Load (kN) :
Max Pull Load : *5 = 1 0 kN

TOWING BOLLARD TEC.SPEC.
Standart : DIN 82607321103
Material : S355 (EN 10 025 ) St523 (DIN 17 100)
Safety Factor : 5
Pull Load (kN) :
Max Pull Load : *5 = 0 kN

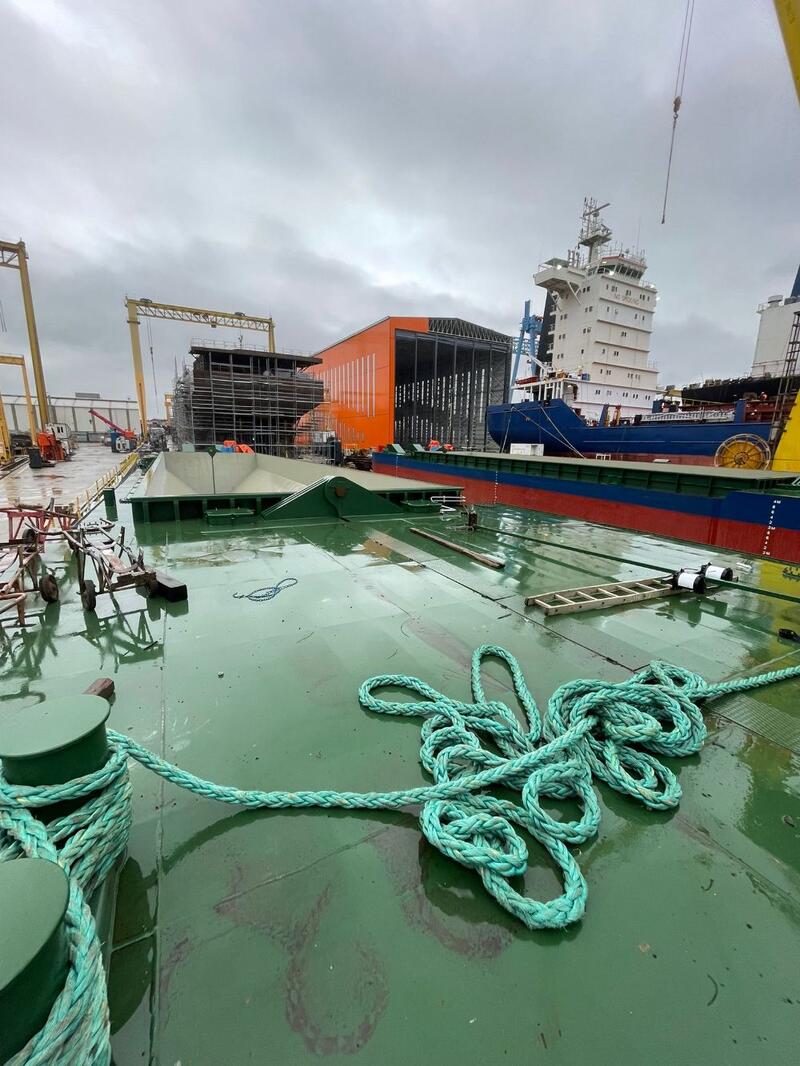

MOORING ROPE LOAD CALC.
Breaking Load = 80 kN
Design Load = 1.25 * 80 = 100 kN
SWL = Design Load * [1/1.875]
= 100 * 0.533
= 53.33 kN
53.33 < 1 0

TOWING ROPE LOAD CALC.
Breaking Load = 175 kN
Design Load = 1.25 * 175 = 218.75 kN
SWL = Design Load * [1/1.875]
= 218.75 * 0.533
= 116.66 kN
116.66

Certification

Flag TURKEY
Class Society and Notation Lloyd Class (Turkey)
